Fender, Esquire Custom, 1960 - Richie Sambora (Bon Jovi)

Tabs

Specifications
Builder:
Fender
Model:
Esquire Custom
Serial Number:

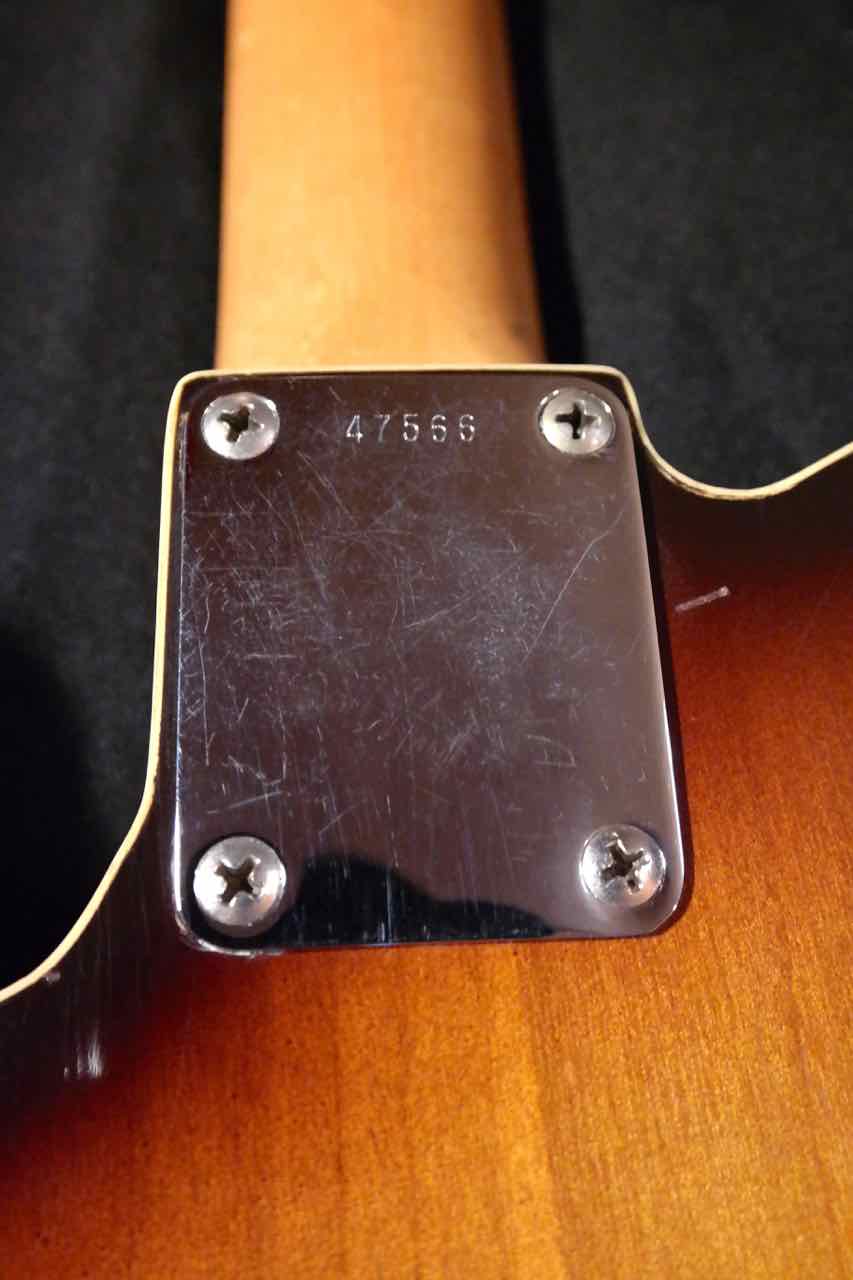

47566
Year:
1960
The Story Behind

When first announced in June of 1950 (but available a bit earlier) as Fender's first electric solid-body, the Esquire was a available with either one or two pickups (actually the "single Esquire" with one pickup was available first), a black pine laminated body, a white pick-guard, steel bridge saddles. Body shape was the standard "Telecaster" body shape, but only 1.5" thick (instead of the normal 1.75" thick). After the first few examples were made, the finish changed to butterscotch blond on a solid ash body and a black pick-guard, and later two pickups (known as the "Double Esquire"). Most 1950 Single Esquires had no truss rod (no contrasting strip down back of maple neck). Though there are at least two 1950 single pickup butterscotch Esquires with a truss rod.

Approximately sixty 1950 Esquires were shipped, though Fender had orders for hundreds at the time. And many early examples with no truss rod were returned to Fender for neck and/or body replacements (but the parts were kept). The reason? Without a truss rod many necks warped (or the owners thought they would warp in the future). Often the body was replaced too because the original non-truss rod Esquire body did not have the truss rod adjustment route between the neck pocket and the neck pickup. Or sometimes the truss rod adjustment route was hand chiseled. If the body wasn't replaced or chiseled, the truss rod could only be adjusted if the neck was removed. This is why surviving examples of the original no-skunk-stripe (no truss rod) Esquires are difficult to find. The Esquire only lasted in this form until the Broadcaster replaced it in October of 1950. The Esquire was re-introduced in January 1951 as a one pickup version of the Broadcaster (Telecaster), with a truss rod and brass bridge saddles (note I have seen a January 1951 Esquire that had *two* pickups, and the guitar appeared to be stock, but by February 1951, one pickup was the norm for the Esquire).

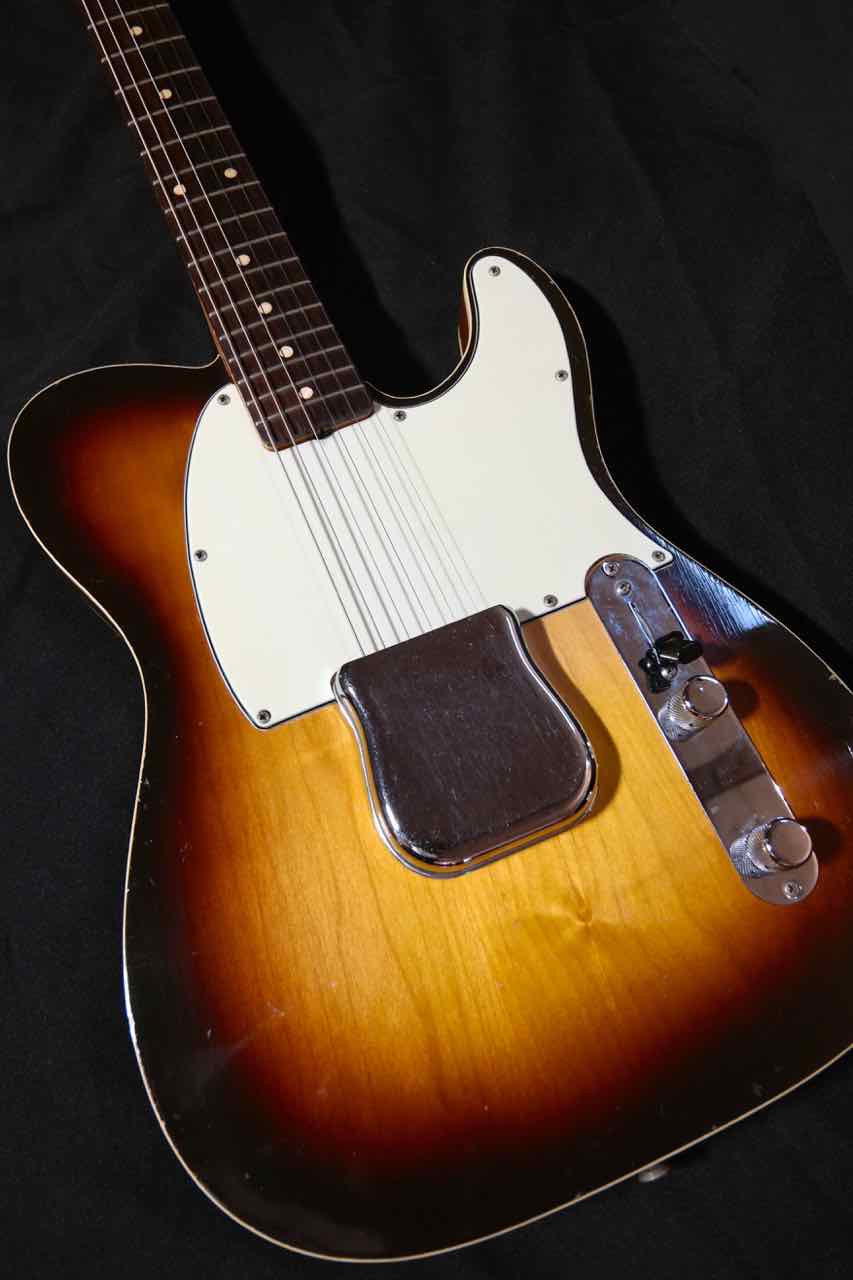

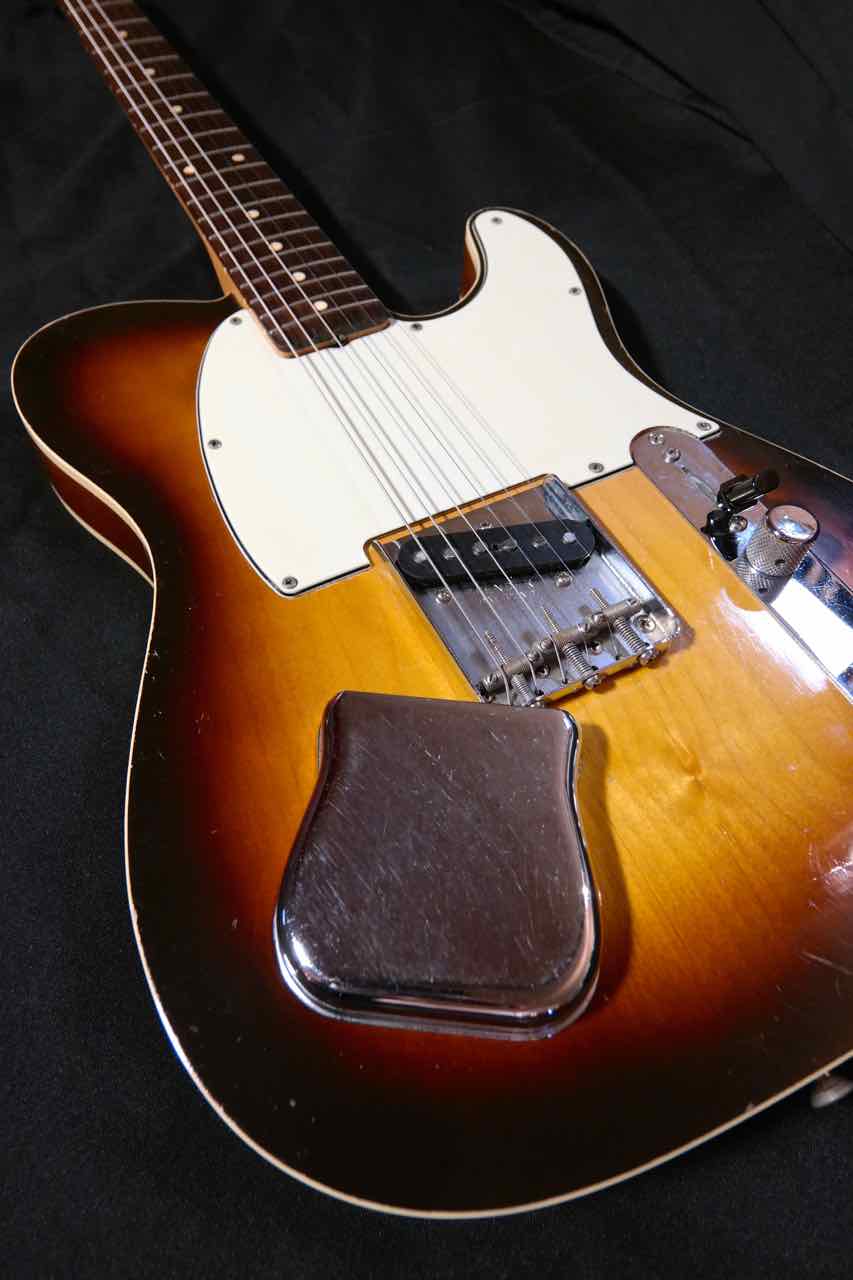

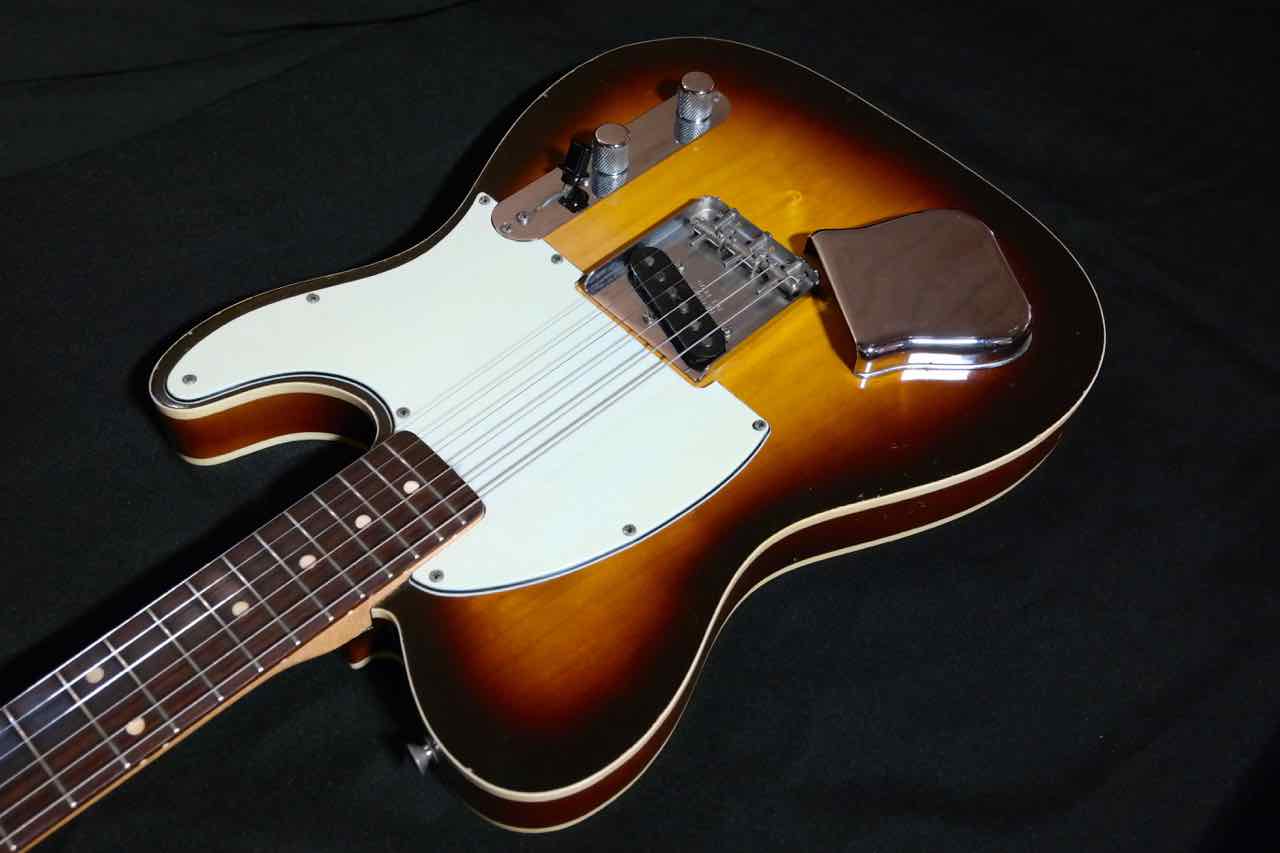

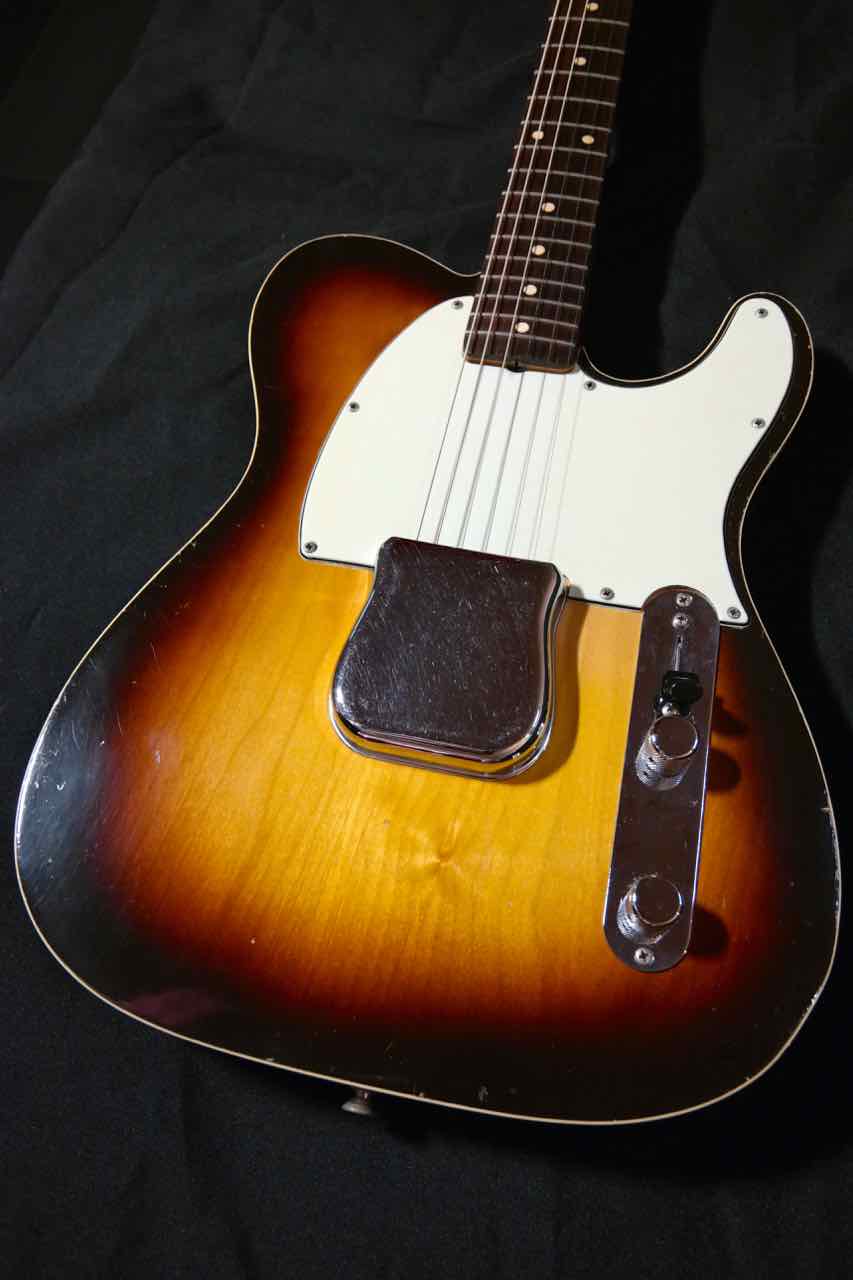

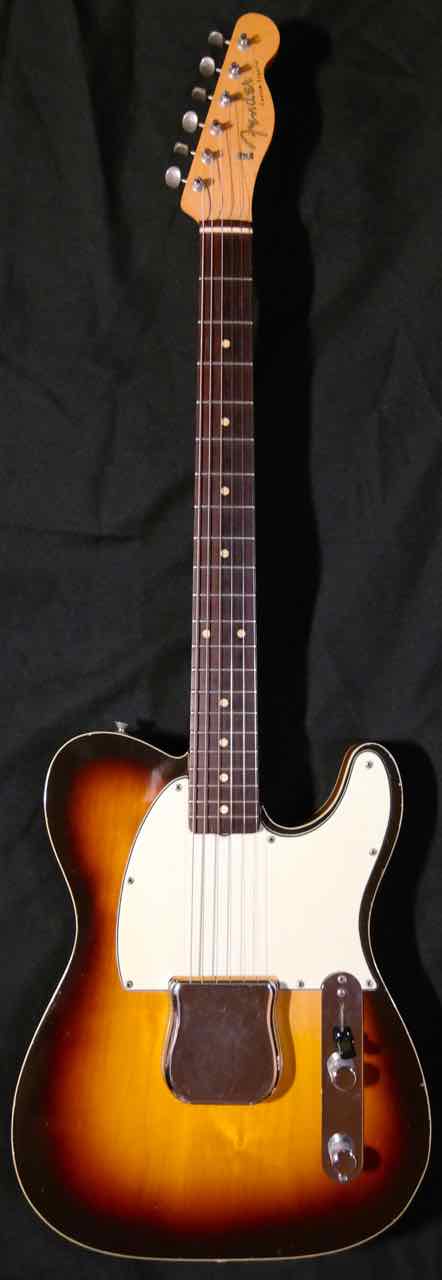

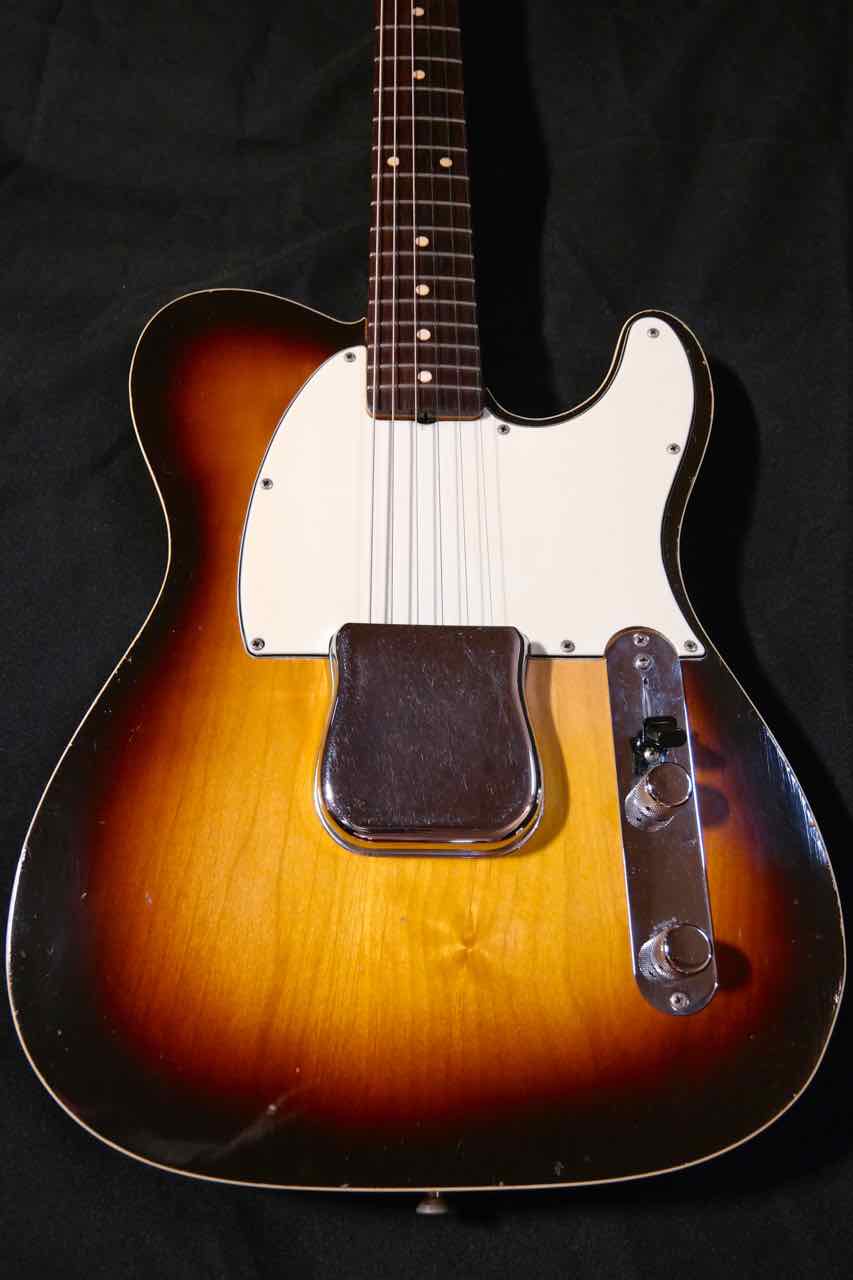

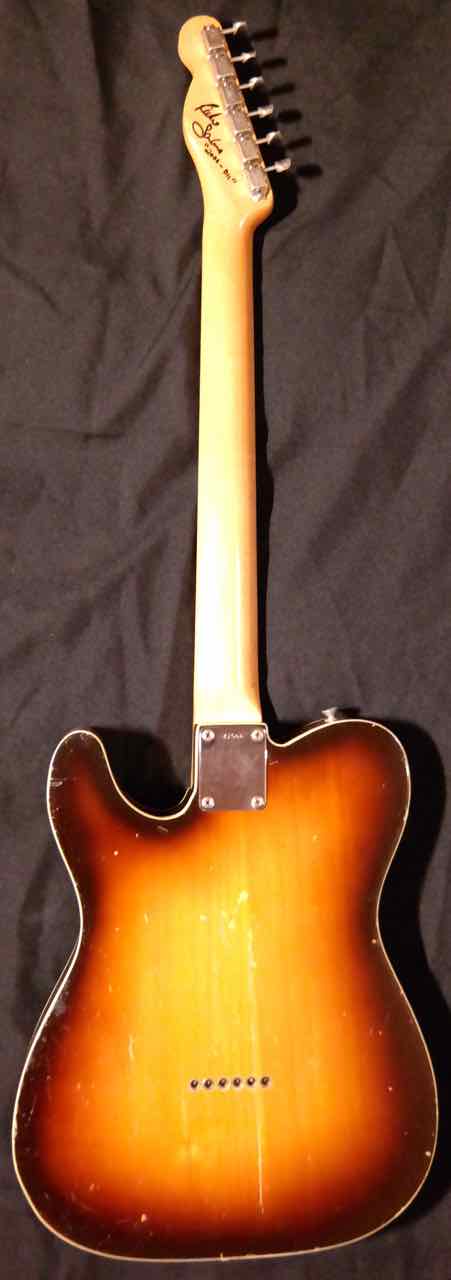

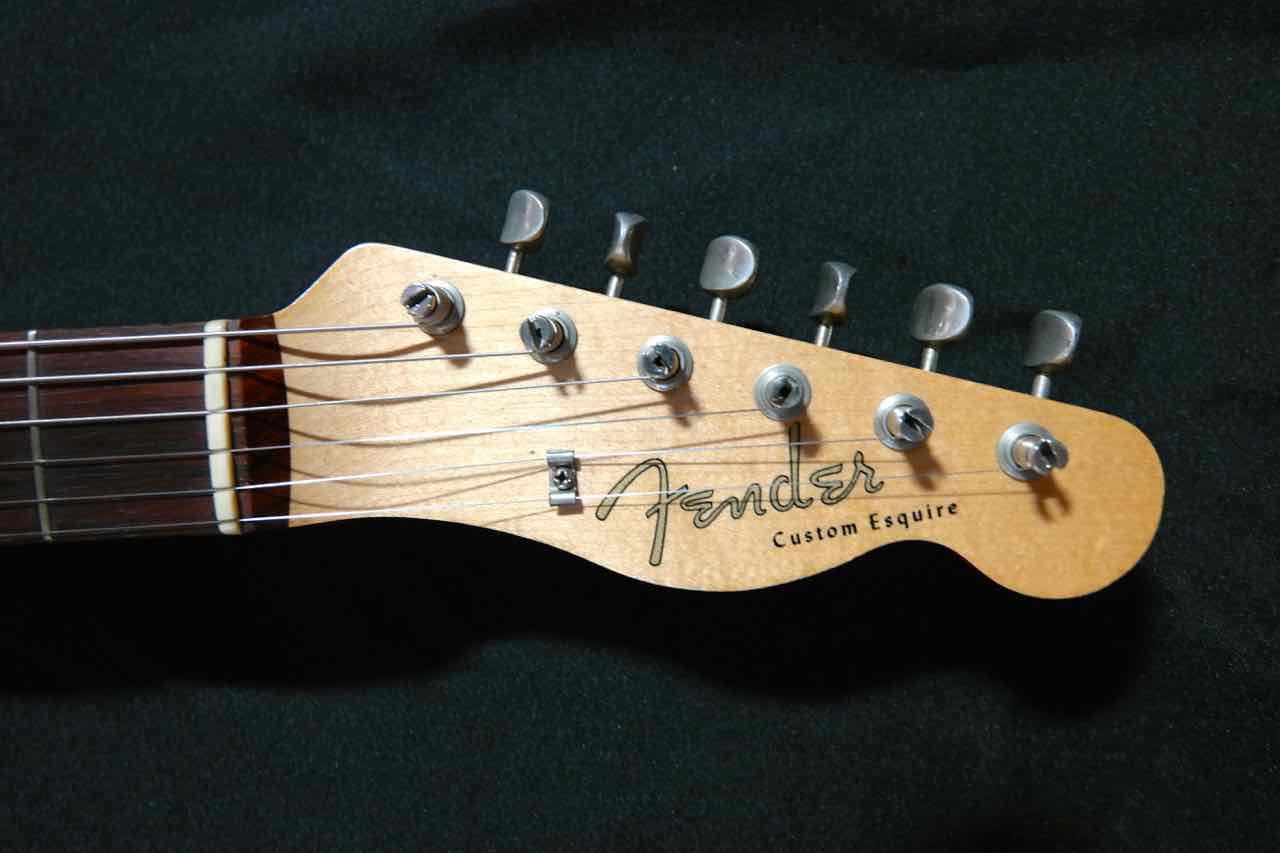

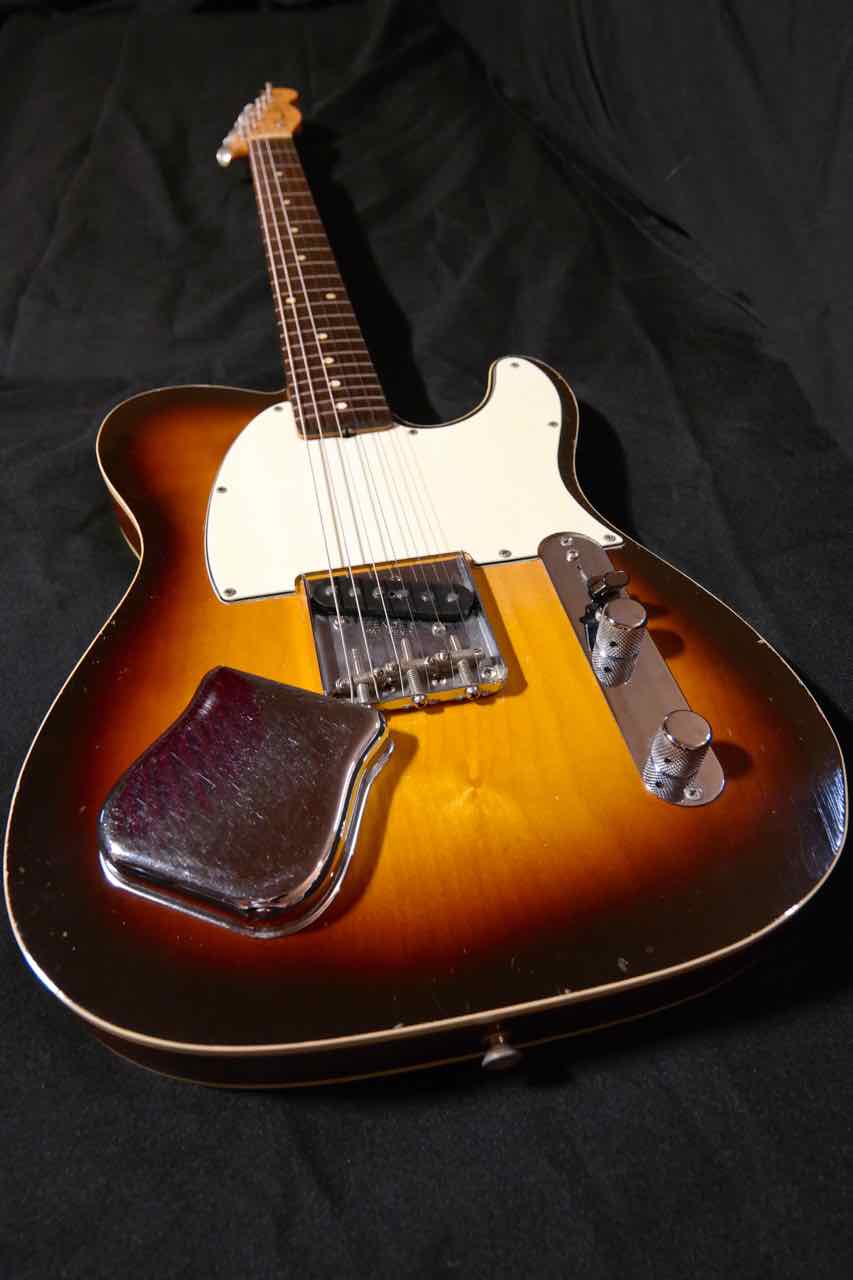

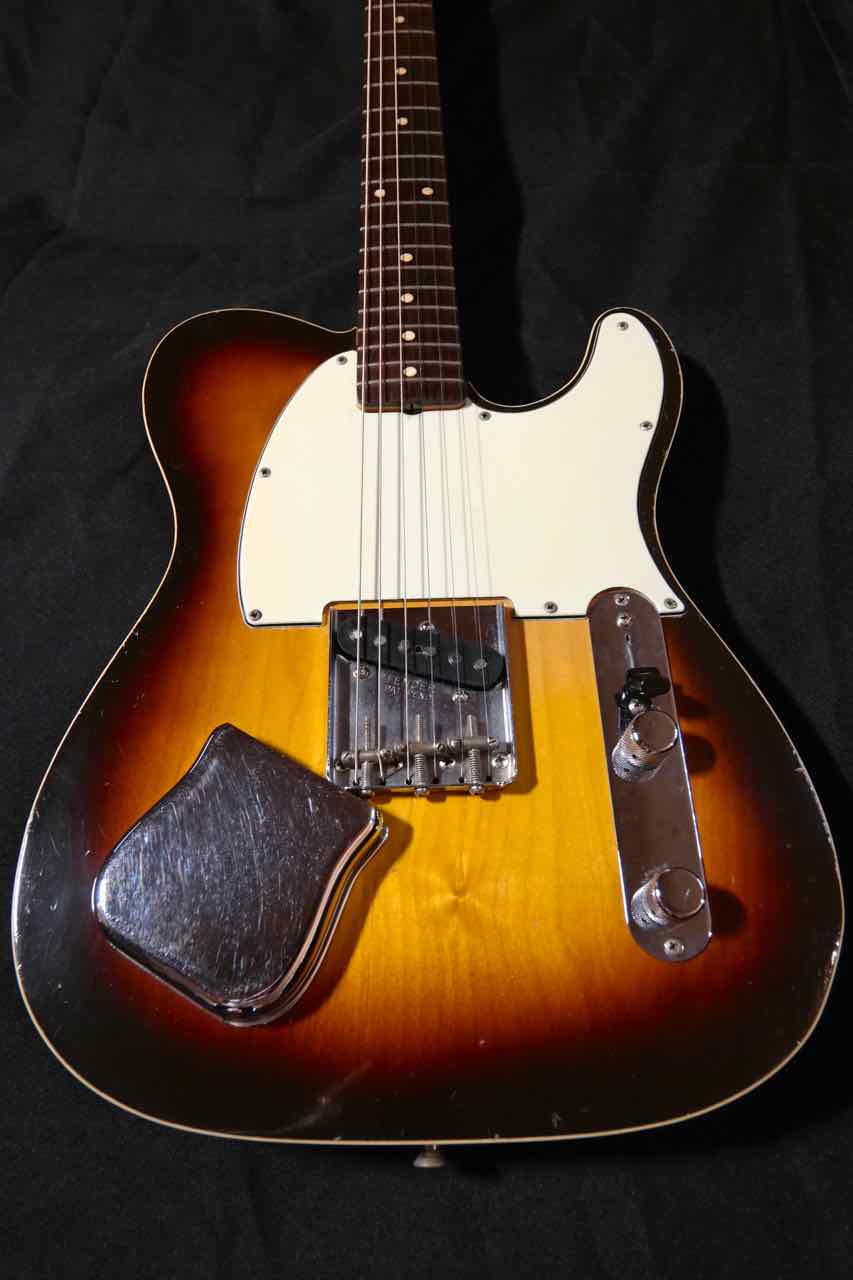

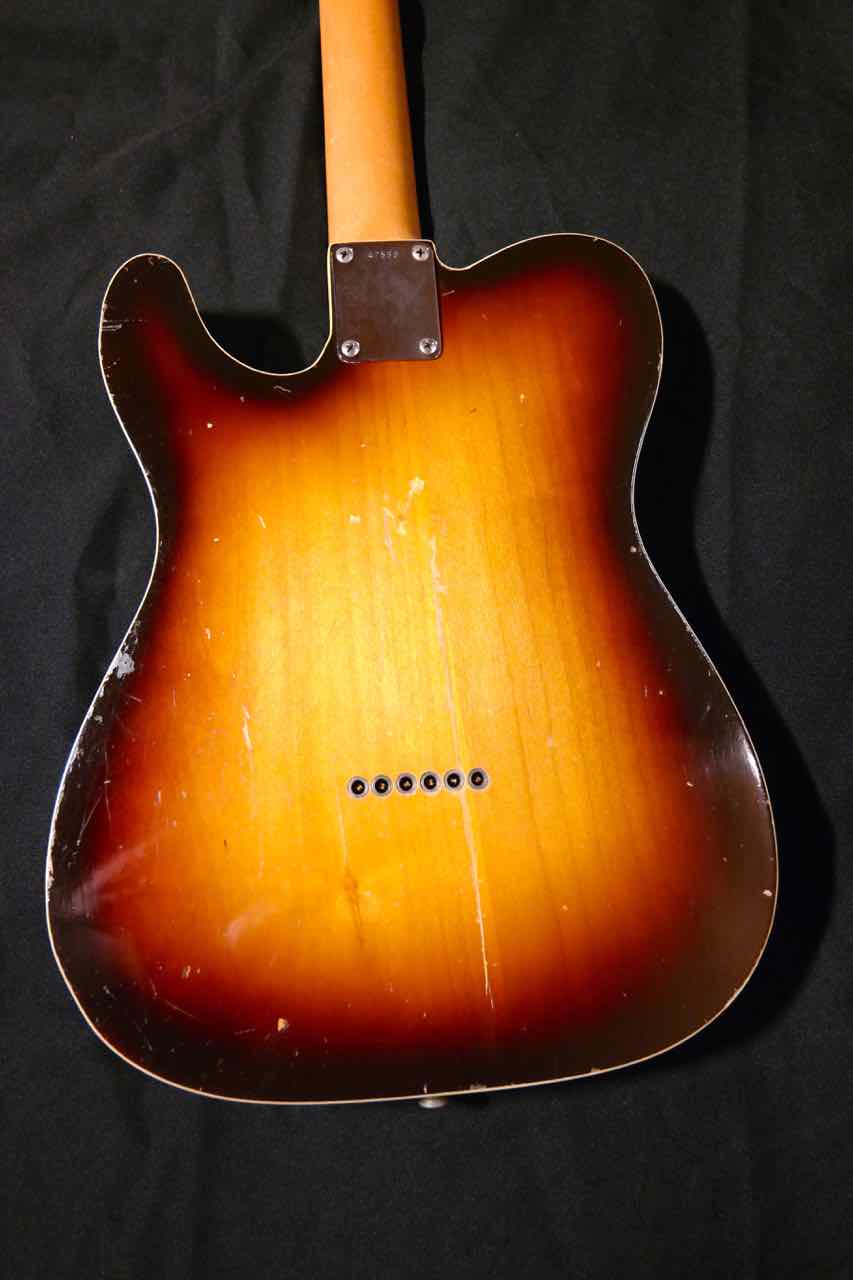

In 1959 the Esquire Custom was introduced with a bound sunburst body. Indeed, by 1959, Teles and Esquires with a more refined look were introduced. The new Telecaster Custom and Esquire Custom had rosewood fretboards (first used by Fender on the Jazzmaster in 1958) and bound sunburst bodies. According to the original catalog description, “A beautiful highly polished Sunburst finish is used and the top and bottom edges of the solid body are trimmed with white contrasting binding.” Both the Esquire and Esquire Custom were discontinued by 1970.

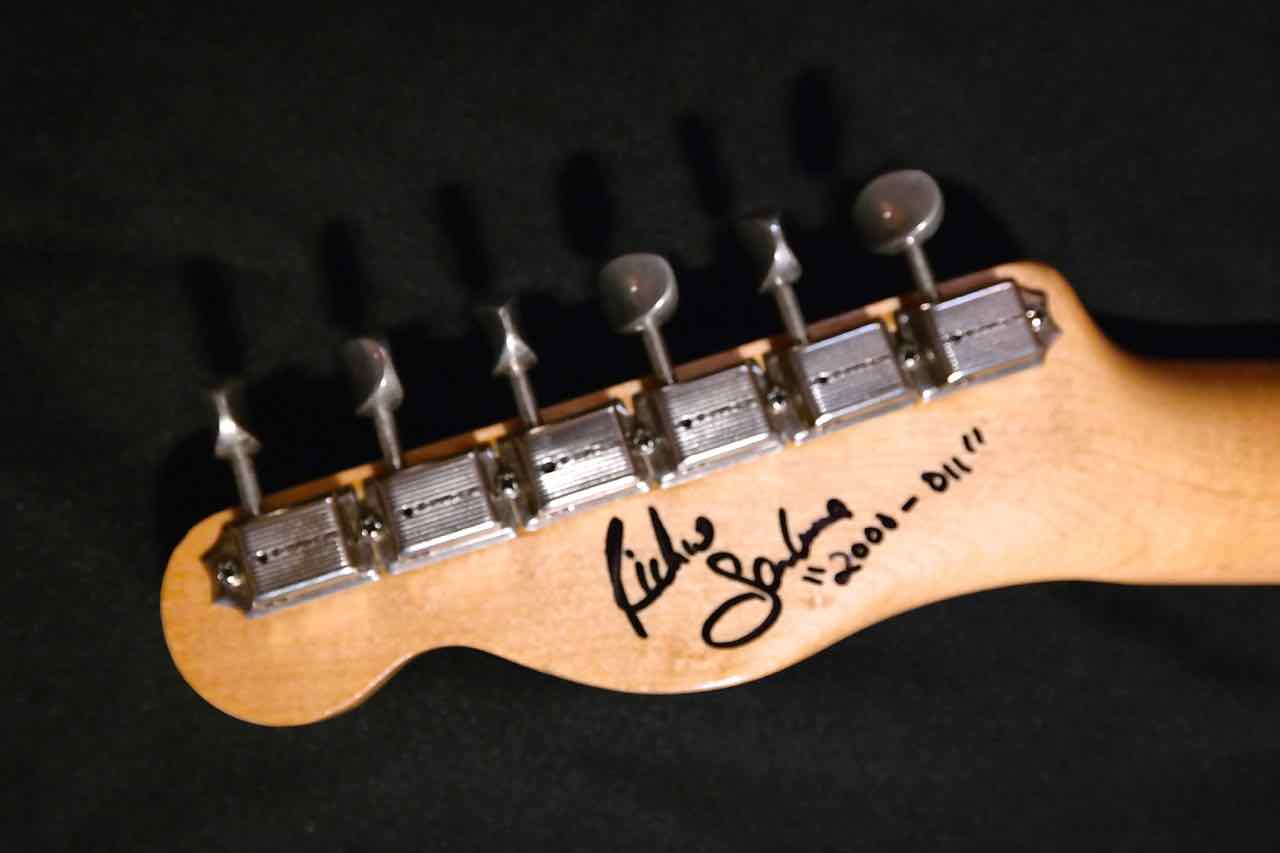

This Esquire Custom was owned by Richie Sambora.
